Diameter: 3/4", 1"
|
 |

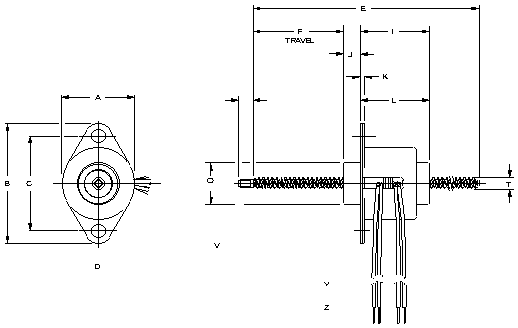

Mechanical Drawing | |
| CAPTIVE & NON-CAPTIVE LINEAR | ||
| Z20000 SERIES | Z26000 SERIES | |
| A | .79 [20.1] | 1.000 [25.4] |
| B | 1 5/16 [7.94 | 1.653 [41.99] |
| C | 1.031 [26.18] | 1.378 [35.00] |
| D | .144 [3.66] | .146 [3.71] |
| E | 3.00 ±.03 [76.2 ±.8] | |
| F C | .543 [13.79] | .542 [13.77] |
| F NC | 1.875 {47.63] | |
| G | .905 ±.025 [22.99 ±.64] | .787 ±.025 [19.99 ±.64] |
| H | .644 ±.010 [16.36 ±.25] | .472 ±.010 [11.99 ±.64] |
| I C | 1.00 [25.4] MAX. | |
| I NC | .78 [19.81] MAX. | .728 [18.49] MAX. |
| J | .18 [4.6] | .157 [3.99] |
| K | .050 [1.27] | .064 [1.63] |
| L | .615 [15.62] MAX. | .57 [14.48] MAX. |
| M | N/A | |
| N | .150 [3.81] | |
| O | N/A | |
| P | ||
| Q | 0.455 ±.002 [011.56 ±.05] | 0.473 ±.002 [012.01 ±.05] |
| R | 0.312 [07.92] | 0.315 [08.00] |
| S | N/A | |
| T C | 0.140 [03.56] | |
| T NC | 0.130 [03.30] | |
| U | N/A | |
| V | #2-56 UNC-2A | |
| W | N/A | |
| X | ||
| Y | #28 AWG | |
| Z | 12" ±1/2" [12.7 ±3.18] PLUS | |
| 1/2" ±1/8" {304.8 ±12.7] STRIPPED | ||
| C = CAPTIVE NC = NON-CAPTIVE | ||
| DIMENSIONS IN BRACKETS ARE METRIC | ||
| UNIPOLAR | Q1 | Q2 | Q3 | Q4 |
| BIPOLAR | Q2-Q3 | Q1-Q4 | Q6-Q7 | Q5-Q8 |
| STEP | ||||
| 1 | ON | OFF | ON | OFF |
| 2 | OFF | ON | ON | OFF |
| 3 | OFF | ON | OFF | ON |
| 4 | ON | OFF | OFF | ON |
| 1 | ON | OFF | ON | OFF |
| 20mm (.79") motor | 26 mm (1") motor | |||||||||
| Bipolar | Unipolar | Bipolar | ||||||||
| Captive | Z-2054 X-V | Z-2646 X-V | Z-2656 X-V | Z-2644 X-V | ||||||
| Non-captive | Z-2084 X-V | Z-2636 X-V | Z-2686 X-V | Z-2634 X-V | ||||||
| Step angle | 15º | 7.5º | 15º | 7.5º | ||||||
| Travel/step (avail. inch) | .001", .002", .004" | .0005", .001" | .002", .004" | .0005", .001" | ||||||
| Travel/step (avail. µm) | 25µm, 50µm, 100µm | 25 µm, 50 µm, 100 µm | 25µm, 50 µm, 100 µm | |||||||
| Operating voltage | 5 VDC | 12 VDC | 5 VDC | 12 VDC | 5 VDC | 12 VDC | 5 VDC | 12 VDC | 5 VDC | 12 VDC |
| Current phase | 230 mA | 100 mA | 340 mA | 140 mA | 340 mA | 140 mA | 340 mA | 140 mA | 340 mA | 140 mA |
| Resistance/ phase | 22 Ohm | 118 Ohm | 14.7 Ohm | 84 Ohm | 14.7 Ohm | 84 Ohm | 14.7 Ohm | 84 Ohm | 14.7 Ohm | 84 Ohm |
| Inductance/ phase | 5.4 mH | 27 mH | 4.3 mH | 24 mH | 3.4 mH | 19 mH | 8.5 mH | 55 mH | 6.7 mH | 44 MH |
| Power consumption | 2.4 W | 3.4 W | ||||||||
| Weight | 24.1 g (.85 oz) | 34.0 g (1.2 oz) | ||||||||
| Temperature rise | 75º C (167º F) | |||||||||
| Insulation resistance | 20 M Ohm | |||||||||
| Series | Diameter | (Inch) | Cycle | 100 PPS | 200 PPS | 300 PPS | 400 PPS | 600 PPS |
| Travel | Percent | |||||||
| Motor | Per Step | Duty | Thrust in ounces | |||||
| Series | Diameter | (Inch) | Cycle | 100 PPS | 200 PPS | 300 PPS | 400 PPS | 600 PPS |
| Z20000 | 3/4" | 0.001 | 100 | 33 | 23 | 15 | 7 | --- |
| Z20000 | 3/4" | 0.001 | 25 | 65 | 56 | 42 | 30 | 10 |
| Z20000 | 3/4" | 0.002 | 100 | 24 | 18 | 12 | 6 | --- |
| Z20000 | 3/4" | 0.002 | 25 | 47 | 40 | 32 | 25 | 8 |
| Z20000 | 3/4" | 0.004 | 100 | 16 | 11 | 7 | 2 | --- |
| Z20000 | 3/4" | 0.004 | 25 | 32 | 28 | 22 | 17 | 6 |
| Z26000 | 1" | 0.0005 | 100 | 150 | 107 | 65 | 33 | --- |
| Z26000 | 1" | 0.0005 | 25 | 230 | 205 | 170 | 125 | 40 |
| Z26000 | 1" | 0.001 | 100 | 118 | 81 | 43 | 16 | --- |
| Z26000 | 1" | 0.001 | 25 | 180 | 160 | 130 | 90 | 20 |
| Z26000 | 1" | 0.002 | 100 | 85 | 60 | 32 | 10 | --- |
| Z26000 | 1" | 0.002 | 25 | 180 | 125 | 100 | 75 | 10 |
| Z26000 | 1" | 0.004 | 100 | 58 | 39 | 20 | 6 | --- |
| Z26000 | 1" | 0.004 | 25 | 95 | 80 | 65 | 45 | 8 |
| Note: | Forces are for bipolar operation, unipolar drives give 30% less torque | |||||||
